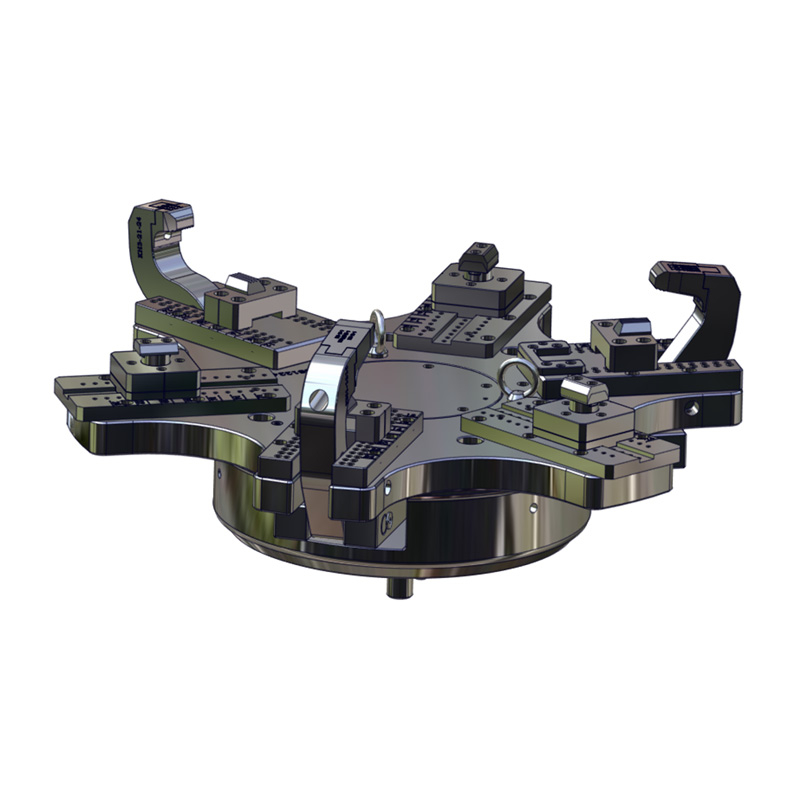

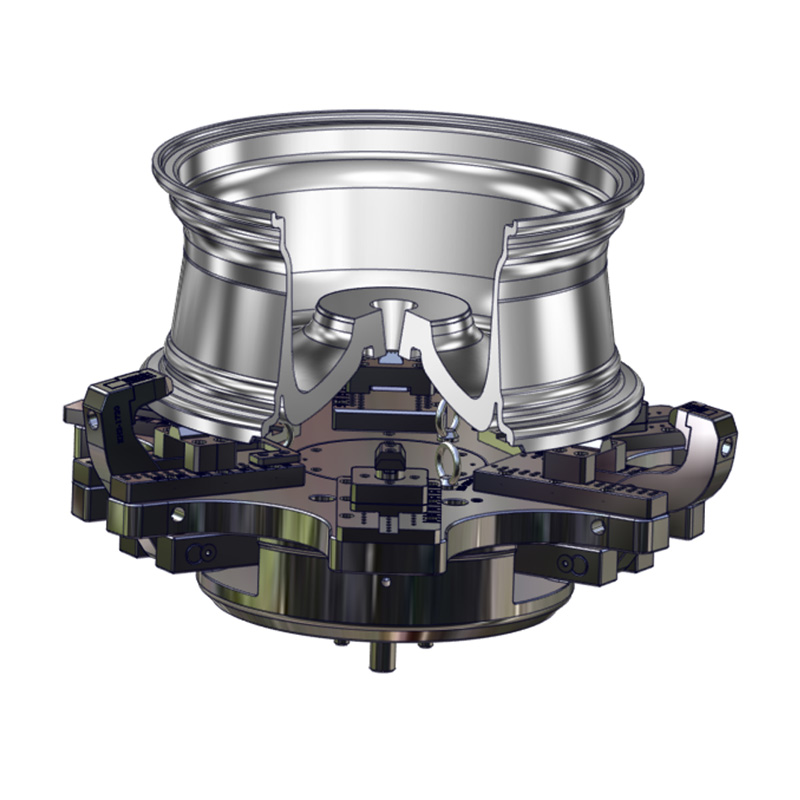

Six-slot positioning lathe fixture

Product Description

Specifications/Models	KH1-2DF6C-1220	KH1-2DF6C-1324	KH1-2DF6C-1726
Clamp rotation diameter (clamping)	Φ670mm	Φ754mm	Φ803mm
Clamp rotation diameter (loosen)	Φ740mm	Φ814mm	Φ867mm
Clamp activity stroke	35mm	35mm	35mm
Spindle nose interface	A2-8/A2-11	A2-8/A2-11	A2-8/A2-11
Pull arm method	Multiple forms	Multiple forms	Multiple forms
Center float (big/small)	Customized according to customer needs	Customized according to customer needs	Customized according to customer needs
