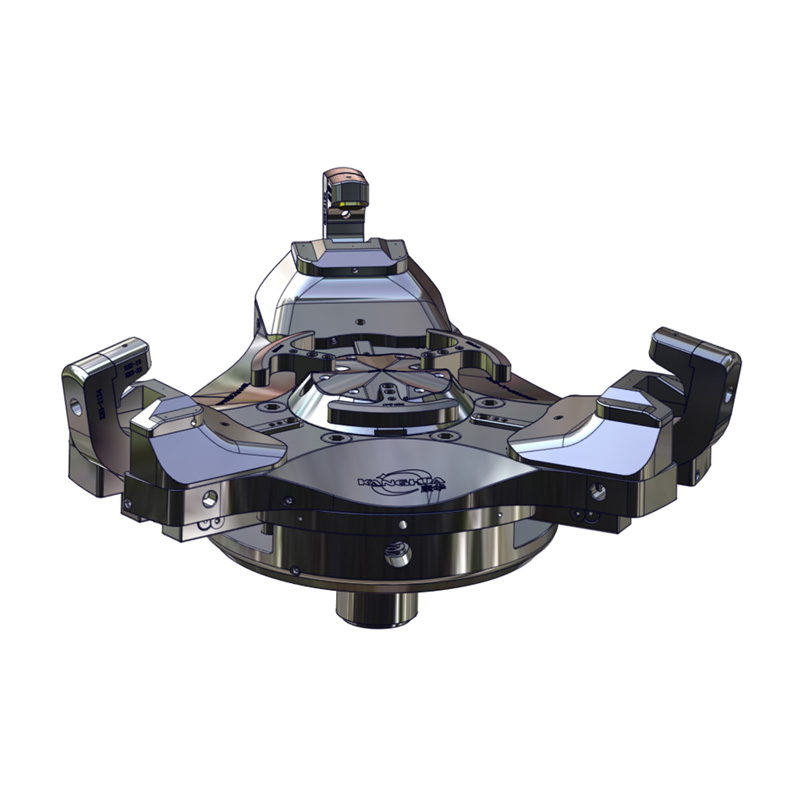

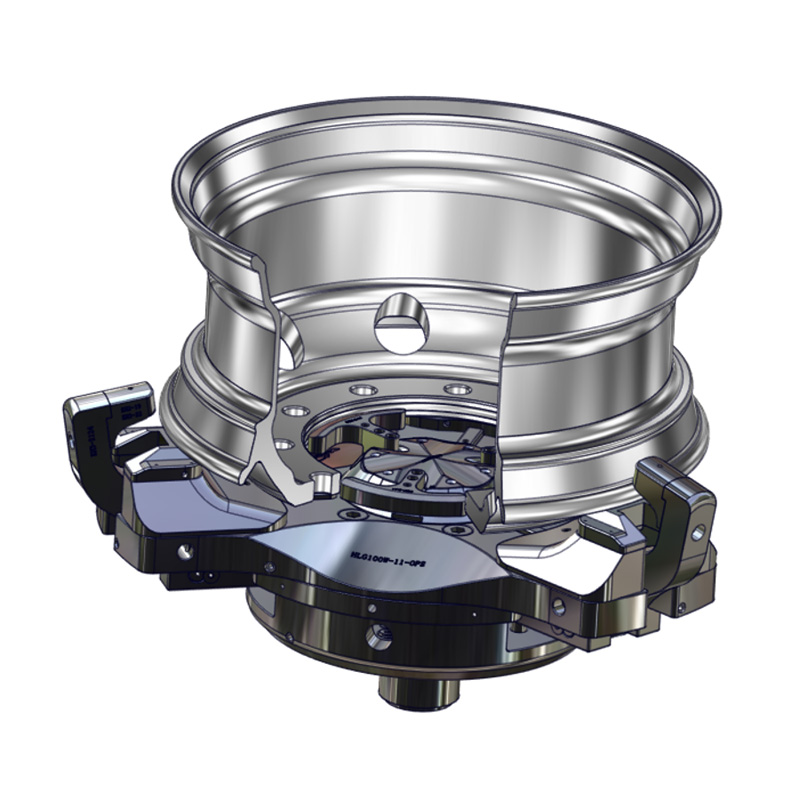

Multi-width arm precision turning fixture

Clamp rotation diameter (clamping)

Φ724mm

Φ755mm

Φ912mm

Clamp rotation diameter (loosen)

Φ797mm

Φ815mm

Φ960mm

Clamp activity stroke

35mm

35mm

35mm

Spindle nose interface

A2-8/A2-11

A2-8/A2-11

A2-8/A2-11

Pull arm method

Multiple forms

single pair

Multiple forms

Positioning method (self-centering)

Customized according to customer needs

Customized according to customer needs

Customized according to customer needs

External hug/internal support

Gas detection function

Customized according to customer needs

Customized according to customer needs

Customized according to customer needs
